Product Info

Products

RESU Prime Copy Link

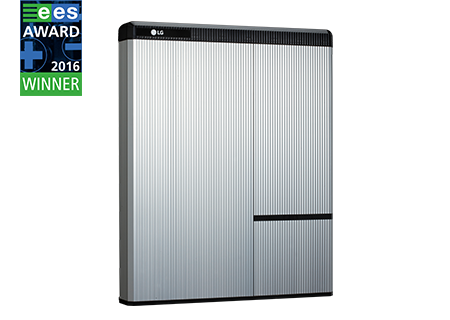

RESU16H Prime

Specification
  • Usable Energy (kWh)

    16

  • Weight (lb)

    352

  • Dimensions (inch)

    19.8 x 42.8 x 11.6

  • Communication Interface

    CAN & RS485

  • Enclosure Protection Rating

    IP55

Compatible Inverters

RESU Prime Copy Link

RESU10H Prime

Specification
  • Usable Energy (kWh)

    9.6

  • Weight (lb)

    246

  • Dimensions (inch)

    19.8 x 32.1 x 11.6

  • Communication Interface

    CAN & RS485

  • Enclosure Protection Rating

    IP55

Compatible Inverters
1984

Long Duration & Energy Copy Link

R1000 (17 Packs) / M48145P5B

Specification
  • Energy (kWh)

    126.6

  • Capacity (Ah)

    145

  • Nominal Voltage (V)

    873

  • Voltage Range (V)

    714 ~ 1,000

  • Dimensions (W x H x D,inch)

    20.5 x 86.6 x 25.8

  • Weight (lbs)

    1995.2

1984

UPS Backup Solution Copy Link

UPS Rack/10 Packs/M48128P6B

Specification
  • Energy (kWh)

    65.9

  • Continuous Power (kW)

    132

  • Nominal Voltage (V)

    515

  • Voltage Range (V)

    420 ~ 588

  • Dimensions (W x H x D,inch)

    23.6 x 78.7 x 31.5

  • Weight (lbs)

    1377.9

1984

Long Duration & Energy Copy Link

R1000 (17 Packs) / M48218P5B

Specification
  • Energy (kWh)

    189.9

  • Capacity (Ah)

    218

  • Nominal Voltage (V)

    873

  • Voltage Range (V)

    714 ~ 1,000

  • Dimensions (W x H x D,inch)

    20.5 x 86.6 x 37.4

  • Weight (lbs)

    2877.0

1984

UPS Backup Solution Copy Link

UPS Rack/10 Packs/M4864P6B

Specification
  • Energy (kWh)

    33.0

  • Continuous Power (kW)

    115

  • Nominal Voltage (V)

    515

  • Voltage Range (V)

    420 ~ 588

  • Dimensions (W x H x D,inch)

    23.6 x 78.7 x 25.6

  • Weight (lbs)

    859.8

1984

Long Duration & Energy Copy Link

R1000 (17 Packs) / M48290P5B

Specification
  • Energy (kWh)

    253.2

  • Capacity (Ah)

    290

  • Nominal Voltage (V)

    873

  • Voltage Range (V)

    714 ~ 1,000

  • Dimensions (W x H x D,inch)

    20.5 x 86.6 x 47.2

  • Weight (lbs)

    3703.8

1984

UPS Backup Solution Copy Link

UPS Rack/12 Packs(6S2P)/M7830P7B

Specification
  • Energy (kWh)

    28

  • Continuous Power (kW)

    250

  • Nominal Voltage (V)

    466

  • Voltage Range (V)

    397 ~ 523

  • Dimensions (W x H x D,inch)

    20.5 x 90.2 x 19.7

  • Weight (lbs)

    1058.2

1984

Long Duration & Energy Copy Link

R1500 (24 Packs) / M48290P5B

Specification
  • Energy (kWh)

    357.5

  • Capacity (Ah)

    290

  • Nominal Voltage (V)

    1,233

  • Voltage Range (V)

    1,008 ~ 1,411

  • Dimensions (W x H x D,inch)

    20.5 x 124.0 x 47.2

  • Weight (lbs)

    5306.5

1984

Telecom Backup Solution / Residential Pack Copy Link

M48126P3S

Specification
  • Energy (kWh)

    6.5

  • Capacity (Ah)

    126

  • Nominal Voltage (V)

    51.8

  • Voltage Range (V)

    42.0 ~ 58.8

  • Dimensions (W x H x D,inch)

    17.5 x 4.3 x 23.1

  • Weight (lbs)

    97

1984

Telecom Backup Solution / Residential Pack Copy Link

M4863P3S

Specification
  • Energy (kWh)

    3.3

  • Capacity (Ah)

    63

  • Nominal Voltage (V)

    51.8

  • Voltage Range (V)

    42.0 ~ 58.8

  • Dimensions (W x H x D,inch)

    17.5 x 4.3 x 13.3

  • Weight (lbs)

    52.9

1984

Long Duration & Energy Copy Link

TR1300

Specification
  • Energy (kWh)

    327.712

  • Capacity (Ah)

    290

  • Nominal Voltage (V)

    1,130.36

  • Voltage Range (V)

    924 – 1,293.6

  • Dimensions (W x H x D, inch)

    40.9 x 47.2 x 68.7

  • Weight (lbs)

    5,088

RESU Gen2 400V Copy Link

RESU10H(Type-R)

Specification
  • Total Energy (kWh)

    9.8

  • Usable Energy (kWh)

    9.3

  • Weight (lbs)

    213.8

  • Dimensions (W x H x D,inch)

    29.3 x 35.7 x 8.1

  • Communication

    RS485

  • Enclosure Protection Rating

    IP55

Compatible Inverters

RESU Gen2 400V Copy Link

RESU10H(Type-C)

Specification
  • Total Energy (kWh)

    9.8

  • Usable Energy (kWh)

    9.3

  • Weight (lbs)

    220.0

  • Dimensions (W x H x D,inch)

    29.3 x 35.7 x 8.1

  • Communication

    CAN2.0B

  • Enclosure Protection Rating

    IP55

Compatible Inverters
715

Short Duration & Power Copy Link

R1000 (17 Packs) / M48128P6B

Specification
  • Energy (kWh)

    112.1

  • Capacity (Ah)

    128

  • Nominal Voltage (V)

    876

  • Voltage Range (V)

    714 ~ 1,000

  • Dimensions (W x H x D,inch)

    20.5 x 86.6 x 25.8

  • Weight (lbs)

    2037.1

837

RESU Gen2 400V Copy Link

RESU10H(Type-R) Secondary Pack

Specification
  • Total Energy (kWh)

    9.8

  • Usable Energy (kWh)

    9.3

  • Weight (lbs)

    213.8

  • Dimensions (W x H x D,inch)

    29.3 x 35.7 x 8.1

  • Communication

    RS485

  • Enclosure Protection Rating

    IP55

Compatible Inverters
837

Short Duration & Power Copy Link

R1000 (17 Packs) / M4864P6B

Specification
  • Energy (kWh)

    56

  • Capacity (Ah)

    64

  • Nominal Voltage (V)

    876

  • Voltage Range (V)

    714 ~ 1,000

  • Dimensions (W x H x D,inch)

    20.5 x 86.6 x 16.7

  • Weight (lbs)

    1287.5
